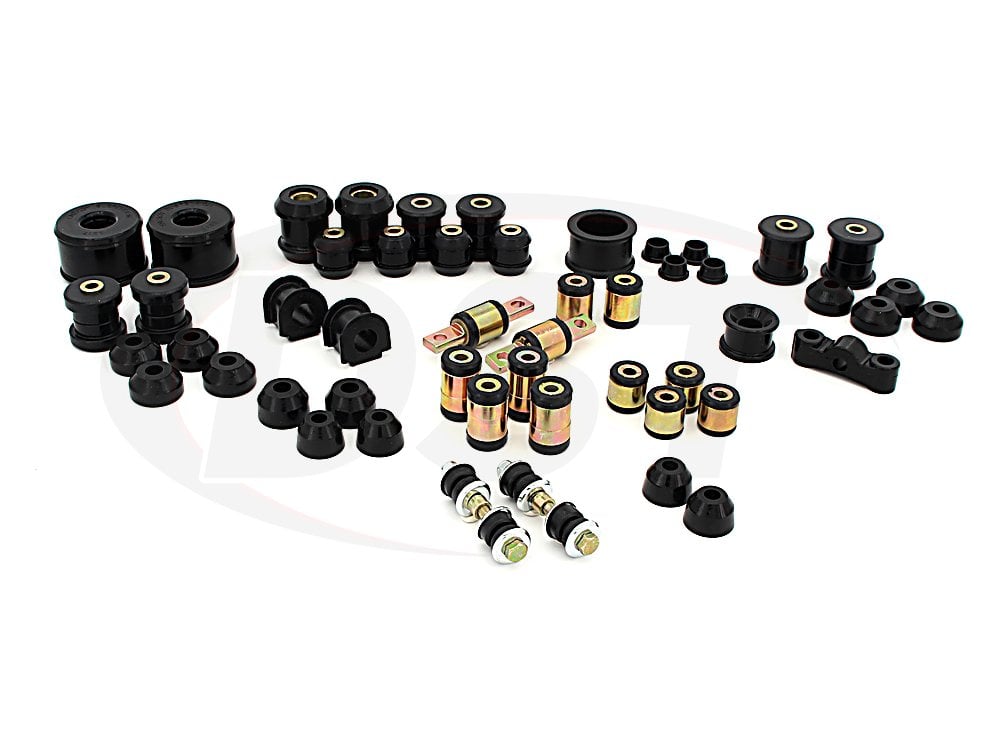

Complete Suspension Bushing Kit - Acura Integra - Type R 97-01

Manufacturer: Energy Suspension
Part Number: packagedeal005

:(?)
Black
Red
:(?)
:(?)
:(?)

:(?)
Free Lifetime Warranty Upgrade
Price: $325.87

check_box Free Shipping!check_box In Stock check_box Ships Immediately


  • Front Control Arm Bushings - 16.3105
  • 4 - 3284 - Upper Arm Bushings
  • 2 - 3285 - Lower Arm Bushings (rear position)
  • 4 - 2274 - Lower Arm Bushings (front position)
  • 4 - Center Metal Sleeves for 3284
  • 2 - Center Metal Sleeves for 2274
  • 2 - Center Metal Sleeves for 3285
  • 3 - Formula 5 Prelube Tubs
  • 1 - Installation Instructions # 17141
  • Rear Upper Control Arm Bushings - 8307
  • 2 - 64176 - Bushings with Outer and Inner Metal Sleeves
  • 2 - 64176 - Bushings with Center Metal Pins and Outer Metal Sleeves
  • 1 - Small Super Grease Tube
  • 1 - Installation Instructions - #8-300
  • Rear Lower Control Arm Bushings - 8317
  • 4 - 64278 - Rear Watts Link Bushing
  • 1 - 19-1750-001 - Super Grease
  • Front Shock Mount Bushings - 16.8102
  • 4 - 2272 - Lower Bushing Halves (Mount in the center of the lower control arm)
  • 2 - Center Metal Sleeves for 2272
  • 4 - 8096 Upper Bushings (Mount at the top of the shock / spring assembly)
  • 4 - 9.11108 Formula 5 Prelube Tubes
  • 1 - Installation Instructions # 17162
  • Rear Shock Mount Bushings - 16.8103
  • 4 - 2270 - Lower Shock Mount Bushings (At Control Arm)
  • 4 - 8096 - Shock Mount Bushing Halves
  • 2 - Center Metal Sleeves
  • 911108 Formula 5 Prelube
  • 1 - Installation Instructions - #17163
  • Front End Links Set - 16.8104 (doesn't include new hardware for the Type R)
  • 8 - 8072 Endlink Grommets
  • 8 - Endlink Washers
  • 2 - Main Endlink Bolts
  • 2 - Center Spacers
  • 2 - Nylock Nuts
  • Front Sway Bar Bushings - (Optional)
  • Rear Sway Bar Bushings - (Optional)
  • Rear Trailing Arm Bushings - 16.7106
  • 2 - 3317 - Trailing Arm Bushings
  • 1 - 9.11108 Formula 5 Prelube Tube
  • 1 - Installation Instructions # 17339
  • Rear Compensator Arm Bushings - 8309
  • 4 - 64177 - Bushings with Outer and Inner Metal Sleeves
  • 1 - Small Super Grease Tube
  • 1 - Installation Instructions - #8-300
  • Steering Rack Bushings - 16.10102
  • 1 - 10024 - Main Steering Rack Bushing
  • 4 - 10022 - Secondary Steering Rack Bushings
  • 1 - Installation Intructions - #17153
  • Transmission Shifter Stabilizer Bushings - 16.1101
  • 1 - 1032 - Bushing a Transmission
  • 1 - 1033 - Bushing at Shifter (same for B and D series Engines)
  • 1 - Installation Instructions # 17161
  • Ball Joint End Boots - 16.13101
  • 2 - 13001 Lower Ball Joint Boots
  • 2 - 13003 Upper Ball Joint Boots
  • Tie Rod End Boots - 9.13103
  • 2 - 13003 - Tie Rod Dust Boots
Suggested part for packagedeal005: dll122
dll122 Front Sway Bar Lateral Locks - 21-22mm
DST Silver Color - Limited Lifetime Warranty

Suggested part for packagedeal005: kll122
kll122 Sway Bar Lateral Locks - 21-22mm
Whiteline Gold Color Plated - 3 Year Warranty

Suggested part for packagedeal005: dll124
dll124 Front Sway Bar Lateral Locks - 23-24mm
DST Silver Color - Limited Lifetime Warranty

Suggested part for packagedeal005: kll124
kll124 Sway Bar Lateral Locks - 23-24mm
Whiteline Gold Color Plated - 3 Year Warranty

Suggested part for packagedeal005: dll116-rear
dll116-rear Rear Sway Bar Lateral Locks - 15-16mm
DST Silver Color - Limited Lifetime Warranty

Suggested part for packagedeal005: kll116
kll116 Sway Bar Lateral Locks - 15-16mm
Whiteline Gold Color Plated - 3 Year Warranty

Suggested part for packagedeal005: dll122-rear
dll122-rear Rear Sway Bar Lateral Locks - 21-22mm
DST Silver Color - Limited Lifetime Warranty

Suggested part for packagedeal005: kll122
kll122 Sway Bar Lateral Locks - 21-22mm
Whiteline Gold Color Plated - 3 Year Warranty

Suggested part for packagedeal005: 9.11110
9.11110 Formula 5 Prelube 3 - 5 mL Tubes
3 - 5ML High Performance Grease by Energy

Suggested part for packagedeal005: 9.11104
9.11104 Formula 5 Prelube - 8oz. Tub Polyurethane Bushing Grease
8 ounce tub of High Performance Grease by Energy

  • Energy Suspension warrants its products against defects in workmanship and material for 24 months when used on passenger cars and light trucks. Products that have been abused, altered, or incorrectly installed are not covered. Energy Suspension will replace defective products or component parts, if inspection for factory personnel determines the part to be defective. Warranty replacement covers only the product. Labor claims, time loss, or freight charges will not be honored.
FitmentComplete Suspension Bushing Kit - Acura Integra - Type R 97-01 packagedeal005 fits these vehicles:
Details
Package Kit
A Package Deal With all the Suspension Parts Available for your Vehicle

packagedeal005 | Complete Suspension Bushing Kit | Acura Integra 97-01

1997 - 2001 Integra Type 'R'

Includes:
  • Front Control Arm Bushings - 16.3105
  • Front Shock Mount Bushings - 16.8102
  • Front End Links Set - 16.8104 (doesn't include new hardware for the Type R)
  • Front Sway Bar Bushings - (Optional)
  • Steering Rack Bushings - 16.10102
  • Transmission Shifter Stabilizer Bushings - 16.1101
  • Ball Joint End Boots - 16.13101
  • Tie Rod End Boots - 9.13103
  • Rear Upper Control Arm Bushings - 8307 (Energy Suspension Doesnt Make this Part. This is a Prothane Brand Part)
  • Rear Lower Control Arm Bushings - 8317 (Energy Suspension Doesnt Make this Part. This is a Prothane Brand Part)
  • Rear Shock Mount Bushings - 16.8103
  • Rear Sway Bar Bushings - (Optional)
  • Rear Trailing Arm Bushings - 16.7106
  • Rear Compensator Arm Bushings - 8309 (Energy Suspension Doesnt Make this Part. This is a Prothane Brand Part)
Includes:
  • Steering Rack Bushings - Power Steering Only 16.10102
  • Shifter Stabilizer Bushings Honda Acura B Series Engines 16.1101
  • Ball Joint Dust Boots Honda | Acura 16.13101
  • Front Control Arm Bushings 16.3105
  • Rear Trailing Arm Bushings 16.7106
  • Front Shock Mount Bushings Honda / Acura 16.8102
  • Rear Shock Mount Bushings Honda / Acura 16.8103
  • Front Sway Bar End Links Honda / Acura 16.8104
  • Rear Upper Control Arm Bushings 8307
  • Rear Compensator Arm Bushings 8309
  • Rear Lower Control Arm Bushings - Type R Only 8317
  • Tie Rod Dust Boots 9.13103
Performance Polyurethane Master Bushing Sets
  • Get real performance, for both on the road and off.
  • Popular performance car, truck and SUV applications.
  • A real must for competition use, or just for that "seat-of-the-pants" fun!
  • Increases vehicle stability and control as well as durability.
  • Reduces wheel hop and traction loss.
  • Proven for many years, by both professional and amateur racers alike.
  • Both restores and improves better than new!
  • Made of Energy's HYPER-FLEX performance polyurethane.
  • Heavy duty metal components are used, for increased strength, when applicable
Footnotes
  • One Set Will Cover the Left and Right Side

Energy Suspension HyperFlex Package Kit

Thinking about changing a bushing? Why not replace them all? Energy Suspension Master Kits include the bushings you need to completely revamp your suspension. Positions and parts vary from vehicle to vehicle, but each package contains the bushings that Energy Suspension offers.

Energy Suspension's Hyperflex polyurethane is a firmer bushing than the O.E. Not only does this increase the longevity of the bushing but gives the suspension a boost in handling performance. With a firmer bushing, there will be a slight increase in NVH (noise, vibration and harshness), but most drivers prefer the boost in performance in spite of that. Replacing the entirety of your suspension bushings maximizes your handling and ensures it stays that way for a long time.

Energy Hyperflex Master Kit
Energy Hyperflex Master Kit Rubber

Replacing the Faulty Rubber

O.E. Manufacturer's use of soft rubber bushings when making a car. This is great for dampening noise and vibrations, but not so great for performance or longevity. Once the rubber fails, that quiet and smooth ride will fail as well. Rubber is prone to failure due to wear and tear, UV rays, road grimes, and vehicle oils.

Be sure to use Formula 5

This Package will come with plenty of Energy Suspension's own Formula 5 Bushing Lubricant. Using plenty of grease is the best way to ensure a long lasting part without any squeaking. So be sure to use more than enough lubricant when upgrading your suspension bushings. If you'd like some extra grease just in case, pick up an extra 3 pack or an 8 ounce tube.
