packagedeal052 | Complete Suspension Bushing Kit | Impala SS 1994-1996

  • packagedeal052 360image 1
  • packagedeal052 Complete Suspension Bushing Kit - Chevrolet Models 91-96
  • packagedeal052 Complete Suspension Bushing Kit - Chevrolet Models 91-96
  • packagedeal052 Complete Suspension Bushing Kit - Chevrolet Models 91-96
  • packagedeal052 Complete Suspension Bushing Kit - Chevrolet Models 91-96
  • packagedeal052 Complete Suspension Bushing Kit - Chevrolet Models 91-96
  • packagedeal052 360image large 1

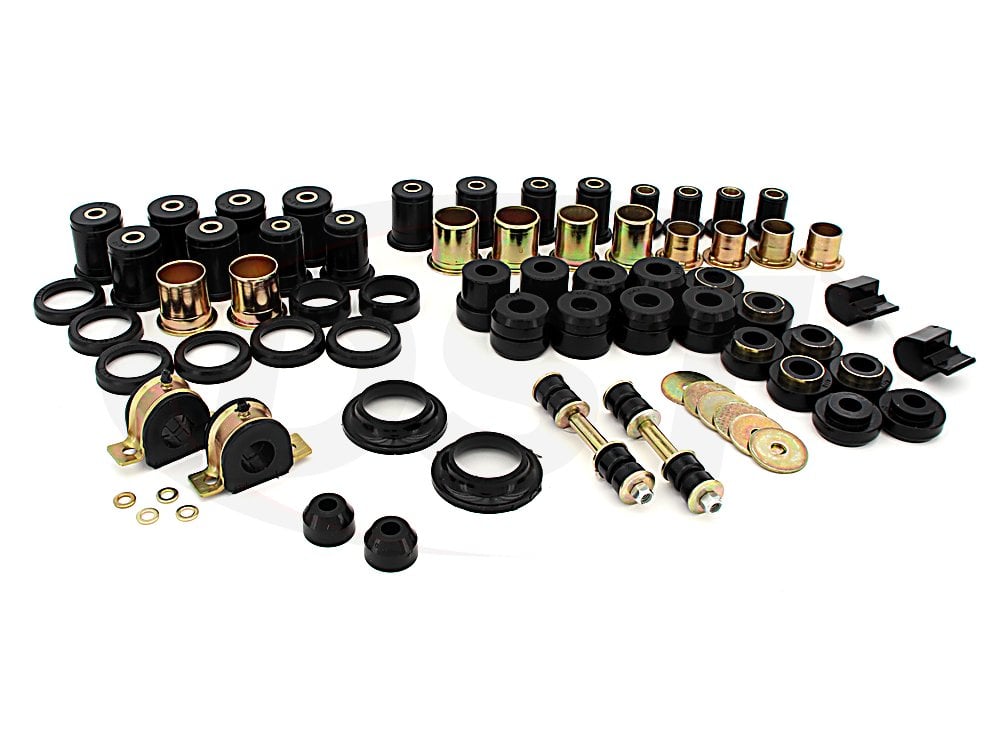

Complete Suspension Bushing Kit - Chevrolet Models 91-96

Manufacturer: Energy Suspension
Part Number: packagedeal052

:(?)
Black
Red

:(?)
Free Lifetime Warranty Upgrade
Price: $484.90

check_box Free Shipping!check_box In Stock check_box Ships Immediately


  • Front Control Arm Bushings - 3.3173
  • 2 - 3009 - Largest
  • 2 - 3010 - Medium
  • 4 - 3292 - Small
  • 2 - 9.11108 Formula 5 Prelube Tubes
  • 1 - Installation Instructions # 17019
  • Rear Control Arm Bushings - 3.3159
  • 6 - 3210 bushing
  • 6 - 15.237 (7/8Inch O.D. x 9/16Inch I.D. x 2.600Inch sleeve)
  • 6 - 3213 thrust washer
  • 2 - I shell
  • 2 - 3230 bushing
  • 2 - 15.205 (3/4Inch O.D. x .480Inch I.D. x 2.600Inch sleeve)
  • 2 - 3231 thrust washer
  • 1 - 17108 installation instructions
  • Body Mount Bushings Kit - 3.4145
  • Position #1 -
  • 2 - 4116 - Body Mount Bushing Halves
  • 2 - 4115 - Body Mount Bushing Halves - With Molded in Center Metal Sleeves
  • Position #2 and #4 -
  • 4 - 4113 - Body Mount Bushing Halves - With Molded in Center Metal Sleeves
  • Position #3 -
  • 4 - 4141 - Body Mount Bushing Halves - With Molded in Center Metal Sleeves
  • Position #5 and #7 -
  • 4 - 4113 - Body Mount Bushing Halves - With Molded in Center Metal Sleeves
  • 4 - 4114 - Body Mount Bushing Halves
  • Position #6 -
  • 4140 - Body Mount Bushing Halves
  • Position #8 -
  • 2 - 4141 - Body Mount Bushing Halves
  • 2 - 4142 - Body Mount Bushing Halves
  • 6 - Metal Washers
  • 1 - Installation Instructions - #17237
  • Front Sway Bar Endlinks - 9.8123
  • 8 - Endlink Grommets
  • 8 - Endlink Outer Washers
  • 2 - Main Bolts
  • 2 - Nylock Nuts
  • 2 - Spacer Sleeves
  • Front Sway Bar Bushings - 30mm - 3.5183
  • 2 - 5351 - 1 3/16 - Sway Bar Bushings
  • 4 - Metal Washers
  • Front Upper Bump Stops - 3.9102
  • 2 - 6093 Pull Through Bump Stops
  • Rear Upper Spring Isolators - 3.6110
  • 2 - Coil Spring Isolators
  • Ball Joint Dust Boots - 9.13128
  • 2 - 13001 - Smaller Boots
  • 2 - 13007 - Larger Boots
  • Outer Tie Rod Dust Boots - 9.13101
  • 2 - 13001 Boots
Suggested part for packagedeal052: dll130
dll130 Front Sway Bar Lateral Lock - 28-30mm
DST Silver Color - Limited Lifetime Warranty

Suggested part for packagedeal052: kll130
kll130 Sway Bar Lateral Lock - 28-30mm
Whiteline Gold Color Plated - 3 Year Warranty

Suggested part for packagedeal052: 9.11110
9.11110 Formula 5 Prelube 3 - 5 mL Tubes
3 - 5ML High Performance Grease by Energy

Suggested part for packagedeal052: 9.11104
9.11104 Formula 5 Prelube - 8oz. Tub Polyurethane Bushing Grease
8 ounce tub of High Performance Grease by Energy

  • Energy Suspension warrants its products against defects in workmanship and material for 24 months when used on passenger cars and light trucks. Products that have been abused, altered, or incorrectly installed are not covered. Energy Suspension will replace defective products or component parts, if inspection for factory personnel determines the part to be defective. Warranty replacement covers only the product. Labor claims, time loss, or freight charges will not be honored.
FitmentComplete Suspension Bushing Kit - Chevrolet Models 91-96 packagedeal052 fits these vehicles:
Details
Package Kit
A Package Deal With all the Suspension Parts Available for your Vehicle

packagedeal052 | Complete Suspension Bushing Kit | Impala SS 1994-1996

1991 - 1996 Chevrolet Fullsize

Includes:
  • Rear Control Arm Bushings 3.3159
  • Front Control Arm Bushings 3.3173
  • Body Mount Bushings and Radiator Support Bushings 3.4145
  • Front Sway Bar Bushings - 30mm (1.18 inch) 3.5183
  • Rear Upper Coil Spring Isolators 3.6110
  • Front Upper Bump Stops 3.9102
  • Front Tie Rod Dust Boots 9.13101
  • Front Ball Joint Dust Boots 9.13128
  • Universal Sway Bar End Links 98123 9.8123
Performance Polyurethane Master Bushing Sets
  • Get real performance, for both on the road and off.
  • Popular performance car, truck and SUV applications.
  • A real must for competition use, or just for that "seat-of-the-pants" fun!
  • Increases vehicle stability and control as well as durability.
  • Reduces wheel hop and traction loss.
  • Proven for many years, by both professional and amateur racers alike.
  • Both restores and improves better than new!
  • Made of Energy's HYPER-FLEX performance polyurethane.
  • Heavy duty metal components are used, for increased strength, when applicable
Footnotes
  • One Set Will Cover the Left and Right Side

Energy Suspension HyperFlex Package Kit

Thinking about changing a bushing? Why not replace them all? Energy Suspension Master Kits include the bushings you need to completely revamp your suspension. Positions and parts vary from vehicle to vehicle, but each package contains the bushings that Energy Suspension offers.

Energy Suspension's Hyperflex polyurethane is a firmer bushing than the O.E. Not only does this increase the longevity of the bushing but gives the suspension a boost in handling performance. With a firmer bushing, there will be a slight increase in NVH (noise, vibration and harshness), but most drivers prefer the boost in performance in spite of that. Replacing the entirety of your suspension bushings maximizes your handling and ensures it stays that way for a long time.

Energy Hyperflex Master Kit
Energy Hyperflex Master Kit Rubber

Replacing the Faulty Rubber

O.E. Manufacturer's use of soft rubber bushings when making a car. This is great for dampening noise and vibrations, but not so great for performance or longevity. Once the rubber fails, that quiet and smooth ride will fail as well. Rubber is prone to failure due to wear and tear, UV rays, road grimes, and vehicle oils.

Be sure to use Formula 5

This Package will come with plenty of Energy Suspension's own Formula 5 Bushing Lubricant. Using plenty of grease is the best way to ensure a long lasting part without any squeaking. So be sure to use more than enough lubricant when upgrading your suspension bushings. If you'd like some extra grease just in case, pick up an extra 3 pack or an 8 ounce tube.

Master Kit Formula 5 Gif
