4.5186 | 32mm Front Sway Bar-Endlink Bushings | 99-04 F250 F350

  • 4.5186 360image 1
  • 4.5186 Front Sway Bar Frame and Endlink Bushings - 32MM (1 1/4 inch) Sway Bar - 1.5 Inch Endlink Eyes
  • 4.5186 Front Sway Bar Frame and Endlink Bushings - 32MM (1 1/4 inch) Sway Bar - 1.5 Inch Endlink Eyes
  • 4.5186 Front Sway Bar Frame and Endlink Bushings - 32MM (1 1/4 inch) Sway Bar - 1.5 Inch Endlink Eyes
  • 4.5186 Front Sway Bar Frame and Endlink Bushings - 32MM (1 1/4 inch) Sway Bar - 1.5 Inch Endlink Eyes
  • 4.5186 Front Sway Bar Frame and Endlink Bushings - 32MM (1 1/4 inch) Sway Bar - 1.5 Inch Endlink Eyes
  • 4.5186 360image large 1

Front Sway Bar Frame and Endlink Bushings - 32MM (1 1/4 inch) Sway Bar - 1.5 Inch Endlink Eyes

Manufacturer: Energy Suspension
Part Number: 4.5186

Color: (?)
Black
Red

Exclusive for DST Customers: (?)
Free Lifetime Warranty Upgrade
Price: $51.45

check_box In Stock check_box Ships Immediately

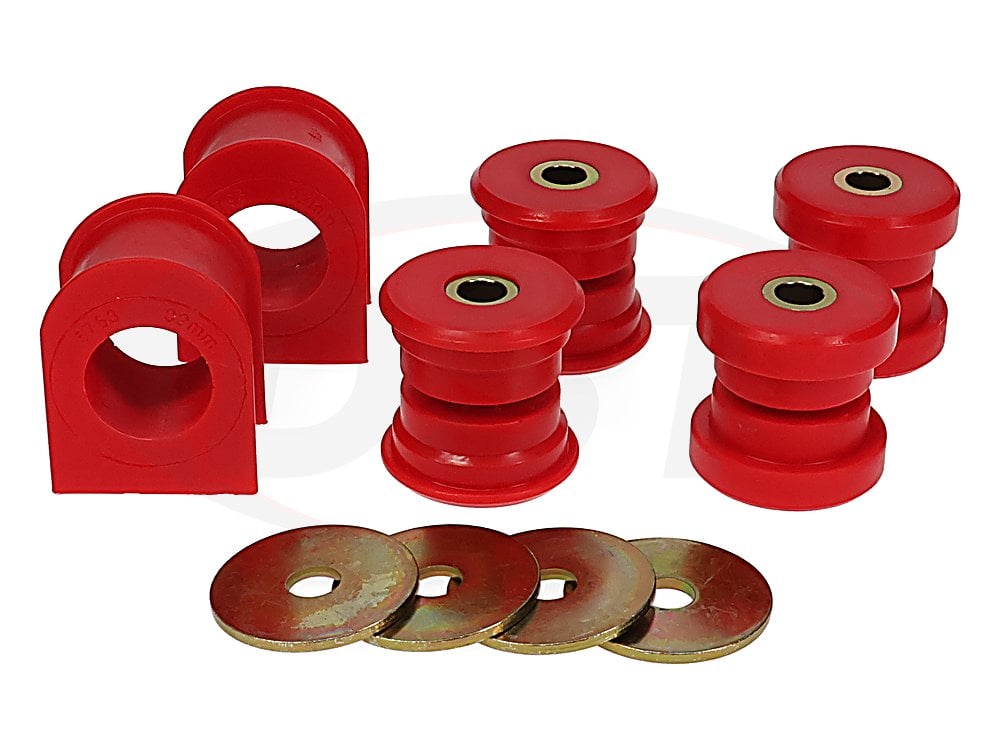

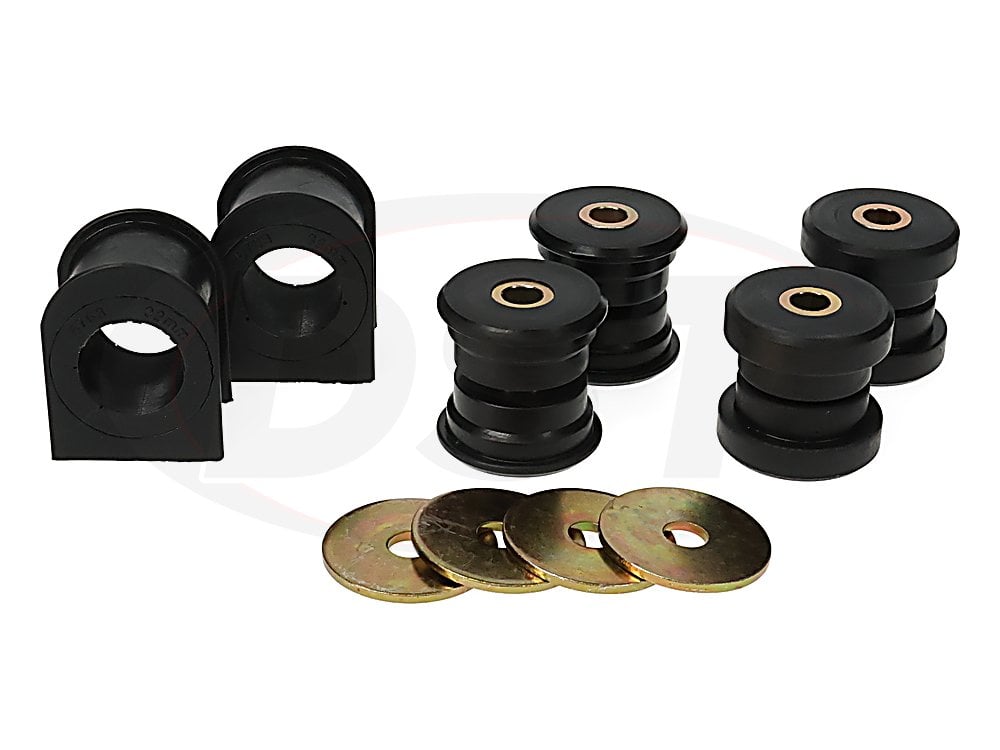

  • 2 5763 Front 32mm(1-1/4?) bushings
  • 4 2592 Endlink bushings, Bar end
  • 4 2593 Endlink bushings, Frame end
  • 1 9.11108 GreaseTube
  • 1 17039 Instruction Sheet
  • 4 15.03.05.39 Washers (2.000?x0.510?x0.120?)
  • 4 15.10.245.39 Sleeves (0.750?x0.480?x1.960?)
Suggested part for 4.5186: dll133
dll133 Front Sway Bar Lateral Lock - 31-33mm
DST Silver Color - Limited Lifetime Warranty

Suggested part for 4.5186: kll133
kll133 Sway Bar Lateral Lock - 31-33mm
Whiteline Gold Color Plated - 3 Year Warranty

Suggested part for 4.5186: 9.11110
9.11110 Formula 5 Prelube 3 - 5 mL Tubes
Energy Suspension provides grease to install these parts, but you can never have too much. Grab an extra 3-pack of grease so you can more liberally apply grease when installing.

  • Energy Suspension warrants its products against defects in workmanship and material for 24 months when used on passenger cars and light trucks. Products that have been abused, altered, or incorrectly installed are not covered. Energy Suspension will replace defective products or component parts, if inspection for factory personnel determines the part to be defective. Warranty replacement covers only the product. Labor claims, time loss, or freight charges will not be honored.
Cross Reference from 4.5186 to 61166
Prothane 61166
Polyurethane.
Price: $39.57
Warranty: Lifetime Warranty

FitmentFront Sway Bar Frame and Endlink Bushings - 32MM (1 1/4 inch) Sway Bar - 1.5 Inch Endlink Eyes 4.5186 fits these vehicles:
Details
Polyurethane Front Sway Bar and Endlink Bushings
Improved handling, low cost, and easy installation are just some of the reasons these components are so popular!

4.5186 | 32mm Front Sway Bar-Endlink Bushings | 99-04 F250 F350

1999 March - 2004 Ford F250 Super Duty, F350 - 4WD


Includes bushings for approximately 1.5 Inch Endlink Eyes. Vehicles with 1 Inch Endlink Eyes will use 4.5192 instead. These vehicles are typically early 99 models (March/1999 and earlier approx)Use 4.5192 Instead!
Polyurethane Front Sway Bar and Endlink Bushings
  • Your vehicle's sway bar system will work at its maximum efficiency!
  • Replaces that original, short lived and too-soft rubber.
  • Easy to install with basic tools.
  • Made of rugged Energy's HYPERFLEX performance polyurethane material and the hardware is heavy duty for lasting durability.
Footnotes

32mm Front Sway Bar and Endlink Bushings '99-'04 F250 Super Duty | F350 Super Duty 4WD

These 32mm (1.25in) Front Sway Bar Bushings and Endlink Bushings will fit the front anti-roll (sway) bar that comes installed on many 1999-2004 F250 Super Duty and F350 4WD Super Dutys. With polyurethane sway bar bushings holding that sway bar you will notice less body roll and better traction from the front tires during a turn.

99-04 f250 super duty 32mm front sway bar bushings and endlinks
worn oe rubber sway bar bushing

Is your Sway Bar Secure?

The original front sway bar bushings that connect the anti-roll bar to the frame are made of rubber, like all of the stock suspension bushings on your Ford F-Series truck. While rubber is great at absorbing vibration and noise it does a poor job of holding alignment and doesn't last long compared to the rest of your truck. As the rubber wears down a gap will be left between the bushings and the bar, which allows the bar to move around and increases body roll when you turn.

Since the front sway bar doesn't transfer vibration between the road and the body there's really no need to use a soft rubber bushing anyway. Even new rubber replacement bushings will deflect when the suspension travels, making the sway bar less effective. To solve this you can use Energy Suspension's polyurethane front sway bar bushings that will last longer and hold the sway bar in place during extreme suspension movements.

Sway Bar Bushing Upgrade

These polyurethane front sway bar bushings from Energy Suspension do not deflect like rubber and will keep the anti-roll bar from shifting around under your truck. If you travel on winding back roads like those around Suspension.com headquarters, then having traction during a turn is important. Whether you're hauling lumber, deer corn, or cattle cubes you don't want to worry about your truck's body rolling to the outside when you turn.

This kit will also replace the original rubber bushings with polyurethane endlink bushings. The endlinks connect the sway bar to the front control arms and rubber bushings will eventually be worn, smashed, or degraded till they are falling apart. These polyurethane endlink bushings will last longer and allow the sway bar to do its job better.

32mm front sway bar bushings 99-04 f350 super duty
32mm anti roll bar bushings and endlinks f250 f350 super duty

Better, For Life

Energy Suspension's front sway bar bushings can be easily installed on your F250 or F350 Super Duty from the comfort of your own garage or driveway. Once you remove the brackets with a socket set you just remove the old bushings, slip the new bushings right over the bar, and replace the bracket. You want to be sure and measure your sway bar before buying any bushings since the manufacturers will sometimes use different sized sway bars for the same year model trucks.

Unlike rubber bushings, that degrade with exposure to heat, motor chemicals, and road salts, these polyurethane front sway bar bushings will last the life of your truck, and Suspension.com will back that up with our exclusive lifetime warranty. Basically, you're getting a more durable part that helps your truck maintain traction in a hard turn, without adding any noise or roughness to your ride. What's not to like?

Energy Suspension 4.5186

Product Reviews for 4.5186 | 32mm Front Sway Bar-Endlink Bushings | 99-04 F250 F350

5 Star (207)
93%
4 Star (11)
5%
3 Star (3)
1%
2 Star (1)
0%
1 Star (1)
0%
starstarstarstarstar

Energy Suspension 4.5186

5 out of 5 based on 223 user reviews. Write a Review

S
verified_user

starstarstarstarstar" Review 1 Year Later "

Working good.

verified_user Verified Buyer - Stephen Swan - . Energy Suspension 4.5186 - 5 out of 5
B
verified_user

starstarstarstarstar" Review 2 Years Later "

Over 50K miles on the front end bushings in the last two years and the front sway bar is still tight and comfortable with my heavy diesel engine.

verified_user Verified Buyer - Bruce Bowers - . Energy Suspension 4.5186 - 5 out of 5
A
verified_user

starstarstarstarstar" Review 1 Year Later "

Very pleased with these high quality parts that are far superior to OEM products.

verified_user Verified Buyer - Alan E Wise - . Energy Suspension 4.5186 - 5 out of 5
G
verified_user

starstarstarstarstar" Review 1 Year Later "

They are still working beautifully.

verified_user Verified Buyer - George Headley - . Energy Suspension 4.5186 - 5 out of 5

compare_arrows Compare with Similar Parts


This Part
4.5186 compare
$51.45
Prothane
Prothane compare
$39.57
($11.88) cheaper

question_answer Customer Questions and Answers


Question:
Hi. Can you please send me the dimensions (ID, OD, thickness) of the sway bar to axle bushings? Ive ordered some (Not from ES) but I have found that the bushings are much too small for the U bracket so something is clearly the wrong part.
Answer:
For the sway bar bushings, the ID is 32mm, the thickness is 10.6mm, and the OD is 45.2mm.

Question:
I have your products. How do I remove the stock bushings from the inside of the arm? They seem to be pressed in.
Answer:
I believe this will answer if not all most of your questions on removing and installing the new bushing without a press. https://www.suspension.com/blog/how-to-install-a-bushing-without-a-press/

Question:
Do I need to grease the bushings in part number 4.5186 before installation?
Answer:
Yes, you will need to grease the bushings in part number 4.5186 before installation.

Question:
2011 ford f250 diesel crew cab 4x4 front sway bar . Which bushing kit?
Answer:
Sway bar bushings are tricky. Even though they could all be the same year make and model the sway bar does vary in diameter making it impossible to have a stock size or cross reference. To insure proper fitment we recommend measuring your bar before placing an order. ...see more
