unarchive In The Box of packagedeal005 keyboard_arrow_down
- Front Control Arm Bushings - 16.3105
- 4 - 3284 - Upper Arm Bushings
- 2 - 3285 - Lower Arm Bushings (rear position)
- 4 - 2274 - Lower Arm Bushings (front position)
- 4 - Center Metal Sleeves for 3284
- 2 - Center Metal Sleeves for 2274
- 2 - Center Metal Sleeves for 3285
- 3 - Formula 5 Prelube Tubs
- 1 - Installation Instructions # 17141
- Rear Upper Control Arm Bushings - 8307
- 2 - 64176 - Bushings with Outer and Inner Metal Sleeves
- 2 - 64176 - Bushings with Center Metal Pins and Outer Metal Sleeves
- 1 - Small Super Grease Tube
- 1 - Installation Instructions - #8-300
- Rear Lower Control Arm Bushings - 8317
- 4 - 64278 - Rear Watts Link Bushing
- 1 - 19-1750-001 - Super Grease
- Front Shock Mount Bushings - 16.8102
- 4 - 2272 - Lower Bushing Halves (Mount in the center of the lower control arm)
- 2 - Center Metal Sleeves for 2272
- 4 - 8096 Upper Bushings (Mount at the top of the shock / spring assembly)
- 4 - 9.11108 Formula 5 Prelube Tubes
- 1 - Installation Instructions # 17162
- Rear Shock Mount Bushings - 16.8103
- 4 - 2270 - Lower Shock Mount Bushings (At Control Arm)
- 4 - 8096 - Shock Mount Bushing Halves
- 2 - Center Metal Sleeves
- 911108 Formula 5 Prelube
- 1 - Installation Instructions - #17163
- Front End Links Set - 16.8104 (doesn't include new hardware for the Type R)
- 8 - 8072 Endlink Grommets
- 8 - Endlink Washers
- 2 - Main Endlink Bolts
- 2 - Center Spacers
- 2 - Nylock Nuts
- Front Sway Bar Bushings - (Optional)
- Rear Sway Bar Bushings - (Optional)
- Rear Trailing Arm Bushings - 16.7106
- 2 - 3317 - Trailing Arm Bushings
- 1 - 9.11108 Formula 5 Prelube Tube
- 1 - Installation Instructions # 17339
- Rear Compensator Arm Bushings - 8309
- 4 - 64177 - Bushings with Outer and Inner Metal Sleeves
- 1 - Small Super Grease Tube
- 1 - Installation Instructions - #8-300
- Steering Rack Bushings - 16.10102
- 1 - 10024 - Main Steering Rack Bushing
- 4 - 10022 - Secondary Steering Rack Bushings
- 1 - Installation Intructions - #17153
- Transmission Shifter Stabilizer Bushings - 16.1101
- 1 - 1032 - Bushing a Transmission
- 1 - 1033 - Bushing at Shifter (same for B and D series Engines)
- 1 - Installation Instructions # 17161
- Ball Joint End Boots - 16.13101
- 2 - 13001 Lower Ball Joint Boots
- 2 - 13003 Upper Ball Joint Boots
- Tie Rod End Boots - 9.13103
- 2 - 13003 - Tie Rod Dust Boots
add_shopping_cart Suggested Parts 10keyboard_arrow_down
DST Silver Color - Limited Lifetime Warranty
Whiteline Gold Color Plated - 3 Year Warranty
DST Silver Color - Limited Lifetime Warranty
Whiteline Gold Color Plated - 3 Year Warranty
DST Silver Color - Limited Lifetime Warranty
Whiteline Gold Color Plated - 3 Year Warranty
DST Silver Color - Limited Lifetime Warranty
Whiteline Gold Color Plated - 3 Year Warranty
3 - 5ML High Performance Grease by Energy
8 ounce tub of High Performance Grease by Energy
lock Warranty Information keyboard_arrow_down
- Energy Suspension warrants its products against defects in workmanship and material for 7 years or 750,000 miles when used on passenger cars and light trucks. Products that have been abused, altered, or incorrectly installed are not covered. Energy Suspension will replace defective products or component parts, if inspection for factory personnel determines the part to be defective. Warranty replacement covers only the product. Labor claims, time loss, or freight charges will not be honored.

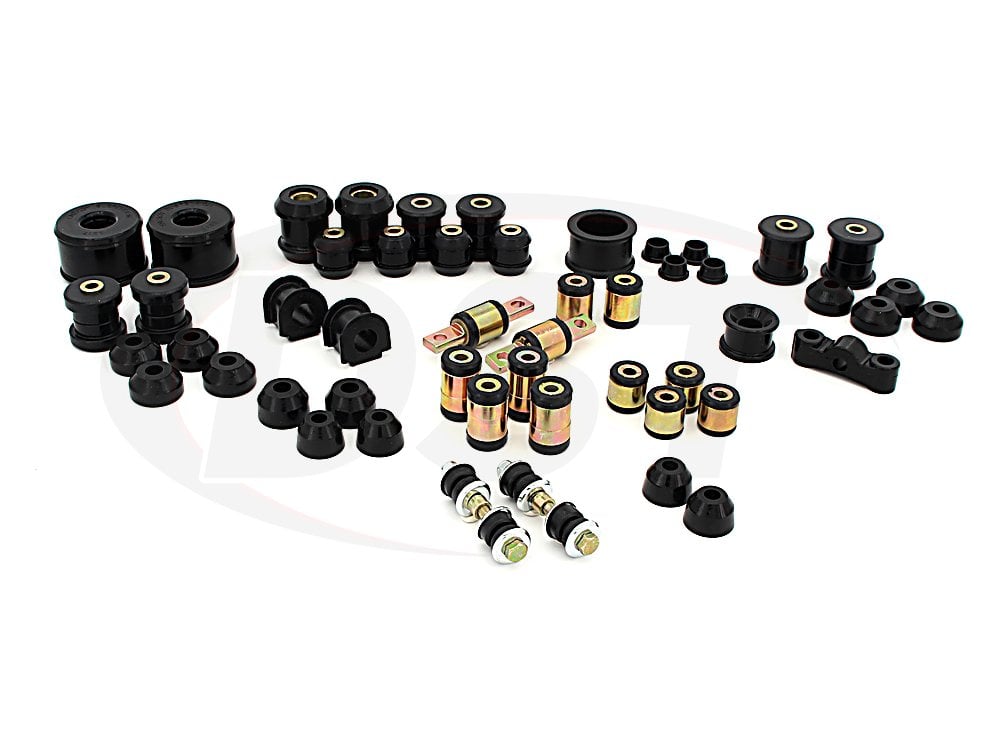

Energy Suspension HyperFlex Package Kit
Thinking about changing a bushing? Why not replace them all? Energy Suspension Master Kits include the bushings you need to completely revamp your suspension. Positions and parts vary from vehicle to vehicle, but each package contains the bushings that Energy Suspension offers.
Energy Suspension's Hyperflex polyurethane is a firmer bushing than the O.E. Not only does this increase the longevity of the bushing but gives the suspension a boost in handling performance. With a firmer bushing, there will be a slight increase in NVH (noise, vibration and harshness), but most drivers prefer the boost in performance in spite of that. Replacing the entirety of your suspension bushings maximizes your handling and ensures it stays that way for a long time.
Replacing the Faulty Rubber
O.E. Manufacturer's use of soft rubber bushings when making a car. This is great for dampening noise and vibrations, but not so great for performance or longevity. Once the rubber fails, that quiet and smooth ride will fail as well. Rubber is prone to failure due to wear and tear, UV rays, road grimes, and vehicle oils.
Be sure to use Formula 5
This Package will come with plenty of Energy Suspension's own Formula 5 Bushing Lubricant. Using plenty of grease is the best way to ensure a long lasting part without any squeaking. So be sure to use more than enough lubricant when upgrading your suspension bushings. If you'd like some extra grease just in case, pick up an extra 3 pack or an 8 ounce tube.
