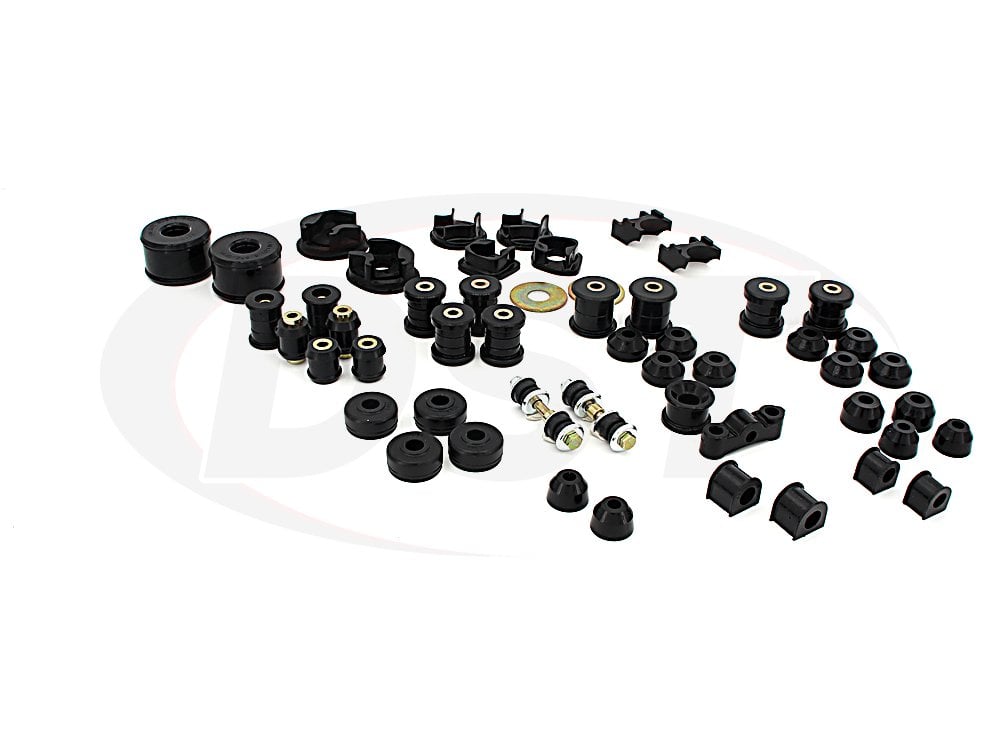

packagedeal032 | Honda CRX VT Suspension Bushings Replacement Kit

  • packagedeal032 360image 1
  • packagedeal032 UK Honda CRX VT Bushings Pack
  • packagedeal032 UK Honda CRX VT Bushings Pack
  • packagedeal032 UK Honda CRX VT Bushings Pack
  • packagedeal032 UK Honda CRX VT Bushings Pack
  • packagedeal032 UK Honda CRX VT Bushings Pack
  • packagedeal032 360image large 1

UK Honda CRX VT Bushings Pack

Manufacturer: Energy Suspension
Part Number: packagedeal032

:(?)
Black
Red

:(?)
Free Lifetime Warranty Upgrade
Price: $353.33

check_box Free Shipping!check_box In Stock check_box Ships Immediately


  • Front Control Arm Bushings - 16.3103
  • 4 - 3280 - Upper Control Arm Bushings
  • 4 - 2271 - Lower Control Arm Bushing Halves
  • 2 - 3281 - Center Spacer Bushings for 2271
  • 4 - Center Metal Sleeves for 3280
  • 2 - Center Metal Sleeves for 2271
  • 1 - Small Formula 5 Prelube Tub
  • 1 - Installation Instructions # 17139
  • Front Strut Arm Bushings - 16.7102
  • 4 - 7095 - Strut Rod Bushings
  • Front Shock Mount Bushings - 16.8102
  • 4 - 2272 - Lower Bushing Halves (Mount in the center of the lower control arm)
  • 2 - Center Metal Sleeves for 2272
  • 4 - 8096 Upper Bushings (Mount at the top of the shock / spring assembly)
  • 4 - 9.11108 Formula 5 Prelube Tubes
  • 1 - Installation Instructions # 17162
  • Rear Control Arm Bushings - 16.3109
  • 8 - 2301 - Outer Bushing Halves
  • 4 - 3288 - Center Bushing Spacers
  • 4 - Center Metal Sleeves for 2301, 3288
  • 2 - 9.11109 Formula 5 Prelube Tubes
  • 1 - Installation Instructions # 17140
  • Rear Shock Mount Bushings - 16.8103
  • 4 - 2270 - Lower Shock Mount Bushings (At Control Arm)
  • 4 - 8096 - Shock Mount Bushing Halves
  • 2 - Center Metal Sleeves
  • 911108 Formula 5 Prelube
  • 1 - Installation Instructions - #17163
  • Rear Trailing Arm Bushings - 16.7106
  • 2 - 3317 - Trailing Arm Bushings
  • 1 - 9.11108 Formula 5 Prelube Tube
  • 1 - Installation Instructions # 17339
  • Front Sway Bar Bushings - 16.5112
  • 2 - 5364 - 15mm Sway Bar Bushings
  • 1 - 9.11108 Formula 5 Prelube Tube
  • 1 - Installation Instructions #17039
  • Front Sway Bar Endlinks - 16.8104
  • 8 - 8072 Endlink Grommets
  • 8 - Endlink Washers
  • 2 - Main Endlink Bolts
  • 2 - Center Spacers
  • 2 - Nylock Nuts
  • Rear Sway Bar Bushings - 16.5110
  • 2 - 18mm Sway Bar Bushings
  • 1 - 9.11108 Formula 5 Prelube Tube
  • 1 - Installation Instructions #17039
  • Outer Tie Rod End Boots - 9.13103
  • 2 - 13003 - Tie Rod Dust Boots
  • Ball Joint Dust Boots - 16.13101
  • 2 - 13001 Lower Ball Joint Boots
  • 2 - 13003 Upper Ball Joint Boots
  • Shifter Bushings - 16.1101
  • 1 - 1032 - Bushing a Transmission
  • 1 - 1033 - Bushing at Shifter (same for B and D series Engines)
  • 1 - Installation Instructions # 17161
  • Motor Mount Inserts - Left and Right - 85068507
  • Upper Left Mount Inserts
  • Upper Right Mount Inserts
  • Motor Mount Inserts - Front and Rear - 16.1104
  • 1 - 1053 - Front Mount - Drivers Side
  • 1 - 1054 - Front Mount - Passenger Side
  • 2 - 1055 - Rear Mount, Driver and Passenger Side
  • 2 - Outer Metal Washers for 1055
  • 1 - Installation Instructions # 17322
Suggested part for packagedeal032: dll116
dll116 Front Sway Bar Lateral Locks - 15-16mm
DST Silver Color - Limited Lifetime Warranty

Suggested part for packagedeal032: kll116
kll116 Sway Bar Lateral Locks - 15-16mm
Whiteline Gold Color Plated - 3 Year Warranty

Suggested part for packagedeal032: dll118-rear
dll118-rear Rear Sway Bar Lateral Locks - 17-18mm
DST Silver Color - Limited Lifetime Warranty

Suggested part for packagedeal032: kll118
kll118 Sway Bar Lateral Locks - 17-18mm
Whiteline Gold Color Plated - 3 Year Warranty

Suggested part for packagedeal032: 9.11110
9.11110 Formula 5 Prelube 3 - 5 mL Tubes
3 - 5ML High Performance Grease by Energy

Suggested part for packagedeal032: 9.11104
9.11104 Formula 5 Prelube - 8oz. Tub Polyurethane Bushing Grease
8 ounce tub of High Performance Grease by Energy

  • Energy Suspension warrants its products against defects in workmanship and material for 24 months when used on passenger cars and light trucks. Products that have been abused, altered, or incorrectly installed are not covered. Energy Suspension will replace defective products or component parts, if inspection for factory personnel determines the part to be defective. Warranty replacement covers only the product. Labor claims, time loss, or freight charges will not be honored.
Details
Package Kit
A Package Deal With all the Suspension Parts Available for your Vehicle

packagedeal032 | Honda CRX VT Suspension Bushings Replacement Kit

1988-1991 Honda CRX VT (UK Model with Box Section Type Rear Control Arms)
Includes:
  • Front Control Arm Bushings - 16.3103
  • Front Strut Arm Bushings - 16.7102
  • Front Shock Mount Bushings - 16.8102
  • Front Sway Bar Bushings - 16.5112
  • Front Sway Bar Endlinks - 16.8104
  • Shifter Bushings - 16.1101
  • Motor Mount Inserts - Left and Right - 8506 8507 (Energy Suspension Doesnt Make this Part. This is a Prothane Brand Part)
  • Motor Mount Inserts - Front and Rear - 16.1104
  • Outer Tie Rod End Boots - 9.13103
  • Ball Joint Dust Boots - 16.13101
  • Rear Control Arm Bushings - 16.3109
  • Rear Shock Mount Bushings - 16.8103
  • Rear Trailing Arm Bushings - 16.7106
  • Rear Sway Bar Bushings - 16.5110
Includes:
  • Shifter Stabilizer Bushings Honda Acura B Series Engines 16.1101
  • Motor Mount Inserts - Set 1 of 2 - Honda Civic CRX 88-91 16.1104
  • Ball Joint Dust Boots Honda | Acura 16.13101
  • Front Control Arm Bushings Honda Civic / CRX 88-91 16.3103
  • Rear Control Arm Bushings 16.3109
  • Front Sway Bar Bushings - 18mm (0.70 inch) 16.5110
  • Rear Sway Bar Bushings - 15mm (0.59 inch) 16.5112
  • Front Strut Rod Bushings 16.7102
  • Rear Trailing Arm Bushings 16.7106
  • Front Shock Mount Bushings Honda / Acura 16.8102
  • Rear Shock Mount Bushings Honda / Acura 16.8103
  • Front Sway Bar End Links Honda / Acura 16.8104
  • Motor Mount Inserts - Left Upper 8506
  • Transmission Mount Inserts - Right Upper 8507
  • Tie Rod Dust Boots 9.13103
Performance Polyurethane Master Bushing Sets
  • Get real performance, for both on the road and off.
  • Popular performance car, truck and SUV applications.
  • A real must for competition use, or just for that "seat-of-the-pants" fun!
  • Increases vehicle stability and control as well as durability.
  • Reduces wheel hop and traction loss.
  • Proven for many years, by both professional and amateur racers alike.
  • Both restores and improves better than new!
  • Made of Energy's HYPER-FLEX performance polyurethane.
  • Heavy duty metal components are used, for increased strength, when applicable
Footnotes
  • One Set Will Cover the Left and Right Side

Energy Suspension HyperFlex Package Kit

Thinking about changing a bushing? Why not replace them all? Energy Suspension Master Kits include the bushings you need to completely revamp your suspension. Positions and parts vary from vehicle to vehicle, but each package contains the bushings that Energy Suspension offers.

Energy Suspension's Hyperflex polyurethane is a firmer bushing than the O.E. Not only does this increase the longevity of the bushing but gives the suspension a boost in handling performance. With a firmer bushing, there will be a slight increase in NVH (noise, vibration and harshness), but most drivers prefer the boost in performance in spite of that. Replacing the entirety of your suspension bushings maximizes your handling and ensures it stays that way for a long time.

Energy Hyperflex Master Kit
Energy Hyperflex Master Kit Rubber

Replacing the Faulty Rubber

O.E. Manufacturer's use of soft rubber bushings when making a car. This is great for dampening noise and vibrations, but not so great for performance or longevity. Once the rubber fails, that quiet and smooth ride will fail as well. Rubber is prone to failure due to wear and tear, UV rays, road grimes, and vehicle oils.

Be sure to use Formula 5

This Package will come with plenty of Energy Suspension's own Formula 5 Bushing Lubricant. Using plenty of grease is the best way to ensure a long lasting part without any squeaking. So be sure to use more than enough lubricant when upgrading your suspension bushings. If you'd like some extra grease just in case, pick up an extra 3 pack or an 8 ounce tube.

Master Kit Formula 5 Gif
Energy Suspension packagedeal032

Product Reviews for packagedeal032 | Honda CRX VT Suspension Bushings Replacement Kit

5 Star (0)
0%
4 Star (1)
100%
3 Star (0)
0%
2 Star (0)
0%
1 Star (0)
0%
starstarstarstarstar_border

Energy Suspension packagedeal032

4 out of 5 based on 1 user reviews. Write a Review

D
verified_user

starstarstarstarstar_border" Good Kit. Add These 2 Parts. Vtec Models Should Read about 2 Parts. "

I see one real problem in this package. The 16.8104G endlink bushings are not good for a Crx Vtec. A non-vtec yes but a Vtec no. You can only use the endlink bushings, not the entire link. I am not sure if the 16.10101G fits the Vtec model correctly. Other than this, It is good for the for crx vtec and non vtec. Also my advice is to purchase the 2 Parts: 8307 - Rear Upper Control Arm Bushings and 8309 - Rear Compensator Arm Bushings in order to change all the bushes. After that, It is perfect. Long road in Crx.

verified_user Verified Buyer - - . Energy Suspension packagedeal032 - 4 out of 5
