unarchive In The Box of packagedeal004 keyboard_arrow_down
- Front Control Arm Bushings - 3.3101
- 4 - 3001 upper control arm bushings
- 4 - 15.011(13/16Inch O.D.x.675Inch I.D.x1.562Inch sleeve)
- 4 - E shells (1.27Inch O.D. x 1.11Inch I.D. x 1.10Inch Total Length)
- 2 - 3006 lower control arm bushings (front pos.)
- 2 - 15.010 (3/4Inch O.D. x 1/2Inch I.D. x 2.4Inch sleeve)
- 2 - A shells (1.3Inch O.D. x 1.2Inch I.D. x 2.08Inch Total Length)
- 2 - 3008 lower control arm bushings (rear pos.)
- 2 - 15.010 (3/4Inch O.D. x 1/2Inch I.D. x 2.4Inch sleeve)
- 2 - B shells (1.6Inch O.D. x 1.4Inch I.D x 2.08Inch Total Length)
- 1 - 17444 installation instructions
- Rear Leaf Spring Bushings - 3.2103
- 4 - 2013 - Larger Bushing Halves
- 8 - 2015 - Smaller Bushing Halves
- 2 - Center Metal Sleeves for 2013
- Formula 5 Prelube Tubes
- 1 - Installation Instructions #17040
- Rear Leaf Spring Pads - 3.6112
- 4 - 6059 Pads (2 Upper and 2 Lower)
- 4 - Metal Sleeves (fits in center of pad)
- Front End Links Set - 9.8117
- 8 - Endlink Grommets
- 8 - Endlink Outer Washers
- 2 - Main Bolts
- 2 - Nylock Nuts
- 2 - Spacer Sleeves
- Front Sway Bar Bushings - (Optional)
- Body Mount Bushings -3.4142
- 2 - 4001 bushings (bottom, position #1)
- 2 - 4002 bushings (top, position #1)
- 2 - 4003 bushings (top, position #3)
- 4 - 4004 bushings (bottom, position #2 & #3)
- 2 - 4005 bushings (top, position #2)
- 2 - 15.02.29.39 (1.282Inch O.A.L. Shells)
- 1 - 17235 installation instructions
- 2 - 15.02.30.39 (1.495Inch O.A.L. Shells)
- 2 - 15.02.31.39 (1.410 Inch O.A.L. Shells)
- 4 - 15.03.14.39 (.500 Inch I.D.x 2.500 Inch O.D. Washers)
- 4 - 15.03.24.39 (.625 Inch I.D.x 2.500 Inch O.D. Washers)
- 2 - 15.07.03.40 (1/2 Inch -13 Nylock nuts)
- 2 - 15.05.41.39 (1/2 Inch -13 x 2 1/2 Inch grd. 5 bolts)
- 4 - 15.05.42.39 (5/8 Inch-11 x 3 Inch grd. 5)
- Transmission Mount - 3.1108
- 1 - 1036 - Transmission Mount
- 1 - Transmission Mount Backer Plate
- 2 - Bolts
- 2 - Lock Washers
- 4 - Metal Washers
- 1 - Installation Intructions - #17112
- Ball Joint End Boots - 9.13125
- 2 - 13009 Dust Boots
- 2 - 13010 Dust Boots
- Outer Tie Rod End Boots - 9.13101
- 2 - 13001 Boots
add_shopping_cart Suggested Parts 6keyboard_arrow_down
DST Silver Color - Limited Lifetime Warranty
Whiteline Gold Color Plated - 3 Year Warranty
DST Silver Color - Limited Lifetime Warranty
Whiteline Gold Color Plated - 3 Year Warranty
3 - 5ML High Performance Grease by Energy
8 ounce tub of High Performance Grease by Energy
lock Warranty Information keyboard_arrow_down
- Energy Suspension warrants its products against defects in workmanship and material for 7 years or 750,000 miles when used on passenger cars and light trucks. Products that have been abused, altered, or incorrectly installed are not covered. Energy Suspension will replace defective products or component parts, if inspection for factory personnel determines the part to be defective. Warranty replacement covers only the product. Labor claims, time loss, or freight charges will not be honored.

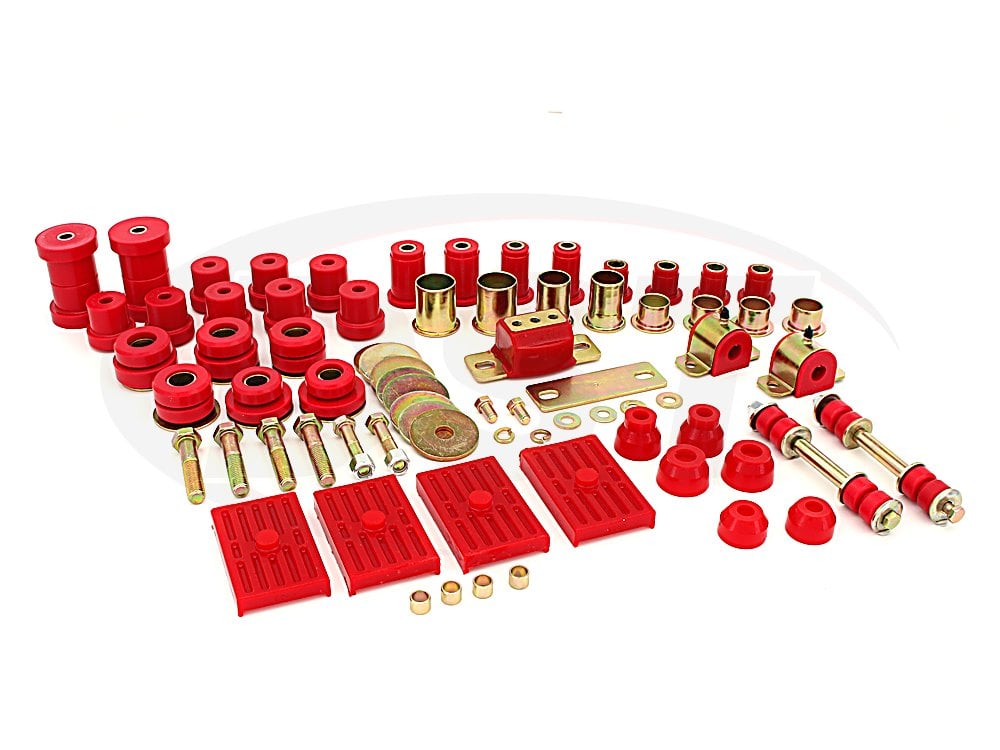

Energy Suspension HyperFlex Package Kit
Thinking about changing a bushing? Why not replace them all? Energy Suspension Master Kits include the bushings you need to completely revamp your suspension. Positions and parts vary from vehicle to vehicle, but each package contains the bushings that Energy Suspension offers.
Energy Suspension's Hyperflex polyurethane is a firmer bushing than the O.E. Not only does this increase the longevity of the bushing but gives the suspension a boost in handling performance. With a firmer bushing, there will be a slight increase in NVH (noise, vibration and harshness), but most drivers prefer the boost in performance in spite of that. Replacing the entirety of your suspension bushings maximizes your handling and ensures it stays that way for a long time.
Replacing the Faulty Rubber
O.E. Manufacturer's use of soft rubber bushings when making a car. This is great for dampening noise and vibrations, but not so great for performance or longevity. Once the rubber fails, that quiet and smooth ride will fail as well. Rubber is prone to failure due to wear and tear, UV rays, road grimes, and vehicle oils.
Be sure to use Formula 5
This Package will come with plenty of Energy Suspension's own Formula 5 Bushing Lubricant. Using plenty of grease is the best way to ensure a long lasting part without any squeaking. So be sure to use more than enough lubricant when upgrading your suspension bushings. If you'd like some extra grease just in case, pick up an extra 3 pack or an 8 ounce tube.
