Complete Suspension Bushing Kit | Prelude 1992-2001

  • 16.18106 360image 1
  • 16.18106 Complete Suspension Bushing Kit - Honda Prelude
  • 16.18106 Complete Suspension Bushing Kit - Honda Prelude
  • 16.18106 Complete Suspension Bushing Kit - Honda Prelude
  • 16.18106 Complete Suspension Bushing Kit - Honda Prelude
  • 16.18106 Complete Suspension Bushing Kit - Honda Prelude
  • 16.18106 360image large 1

Complete Suspension Bushing Kit - Honda Prelude

Manufacturer: Energy Suspension
Part Number: 16.18106

(?)
Black
Red

(?)
Exclusive for DST Customers
Price: $287.44

check_box Free Shipping!check_box In Stock check_box Ships Immediately


  • Front end control arm bushing set: 16.3106
  • 4 - 2294 lower control arm bushing outer.
  • 2 - 3289 lower control arm bushing center.
  • 2 - 15.10.224.39 lower control arm sleeve. (3/4"O.D. x 12mm I.D. x 2.225")
  • 8 - 2280 upper control arm bushing.
  • 4 - 15.10.244.39 upper control arm sleeve. (3/4"O.D. x 10mm I.D. x 1.577")
  • 1 - 17152 installation instructions.
  • Front strut rod set: 16.7103
  • 2 - 7096 rear position.
  • 2 - 7097 front position.
  • Front shock bushing set: 16.8106
  • 4 - 8096 upper shock bushing.
  • 4 - 2295 lower shock bushing.
  • 2 - 15.10.302.39 lower shock sleeve. (3/4"O.D. x 12mm I.D. x 2.040")
  • 1 - 17162 installation instructions.
  • Rear control arm bushing set: 16.3112
  • 4 - 2355 lower control arm bushing.
  • 2 - 15.10.83.39 lower control arm sleeve. (7/8? O.D. X 9/16? I.D. X 2.030?)
  • 8 - 2280 upper control arm bushing.
  • 4 - 15.10.244.39 upper control arm sleeve. (3/4"O.D. x 10mm I.D. x 1.577")
  • 1 - 17265 installation instructions.
  • Rear shock bushing set: 16.8108
  • 4 - 8196 upper shock bushing.
  • 4 - 2356 lower shock bushing.
  • 2 - 15.10.148.39 lower shock sleeve. (3/4"O.D. x 12mm I.D. x 2.354?)
  • 1 - 17266 installation instructions.
  • 2 - 6144 rear (uppers only) set # 16.9102
  • 2 - 6143 rear upper spring pad set: 16.6103
  • Front and rear bump stops:
  • 2 - 6134 front (uppers only) set # 16.9101
  • Coil spring isolator set:
  • 2 - 6133 front upper spring pad set: 16.6101
  • Grease:
  • 2 - 9.11101 grease tubs.
Suggested part for 16.18106: 16.5123
16.5123 Front Sway Bar and End Link Bushings - 25mm (0.98 inch)
25mm

Suggested part for 16.18106: 16.5122
16.5122 Rear Sway Bar and End Link Bushings - 23mm (0.90 inch)
23mm

Suggested part for 16.18106: 16.7105
16.7105 Rear Trailing Arm Bushings
Not Included in the Hyperflex Kit

Suggested part for 16.18106: 16.1103
16.1103 Motor Mount Inserts - Honda Prelude 92-01
Not Included in the Hyperflex Kit

Suggested part for 16.18106: 9.11104
9.11104 Formula 5 Prelube - 8oz. Tub Polyurethane Bushing Grease
8 ounce tub of High Performance Grease by Energy

Suggested part for 16.18106: 9.11110
9.11110 Formula 5 Prelube 3 - 5 mL Tubes
3 - 5ML High Performance Grease by Energy

  • Energy Suspension warrants its products against defects in workmanship and material for 7 years or 750,000 miles when used on passenger cars and light trucks. Products that have been abused, altered, or incorrectly installed are not covered. Energy Suspension will replace defective products or component parts, if inspection for factory personnel determines the part to be defective. Warranty replacement covers only the product. Labor claims, time loss, or freight charges will not be honored.

question_answer Ask us a Question

FitmentComplete Suspension Bushing Kit - Honda Prelude 16.18106 fits these vehicles:
Details
Hyperflex Master System Kit
It's Energy's System To Get The Very Maximum In Performance and Durability From Your Vehicle!

Complete Suspension Bushing Kit | Prelude 1992-2001

Includes:
Performance Polyurethane Master Bushing Sets
  • Get real performance, for both on the road and off.
  • Popular performance car, truck and SUV applications.
  • A real must for competition use, or just for that "seat-of-the-pants" fun!
  • Increases vehicle stability and control as well as durability.
  • Reduces wheel hop and traction loss.
  • Proven for many years, by both professional and amateur racers alike.
  • Both restores and improves better than new!
  • Made of Energy's HYPER FLEX performance polyurethane.
  • Heavy duty metal components are used, for increased strength, when applicable
Footnotes
  • One Set Will Cover the Left and Right Side

Complete Bushing Kit | Honda Prelude 1992-2001

Complete-Bushing-Kit

Energy Suspension Complete Bushing Kit

The Energy Suspension Hyper-Flex Polyurethane Complete Bushing Kit (16.18106) is designed to replace the weak points across the entire suspension with high-performance polyurethane components, improving suspension handling and overall stability. Specifically engineered for the (1992-2001) Honda Prelude, this master kit includes a set of polyurethane bushings, delivering the full range of performance benefits that Energy Suspension has to offer.

Includes:

Wear and Tear

Signs of bushing failure include squeaking or clunking noises when driving over bumps, braking, or turning. Common indicators also include visible wear and tear on the bushings, such as cracks or splitting, as well as the vehicle pulling to one side while driving. In addition, excessive vibrations may be felt through the steering wheel along with unstable suspension alignment.

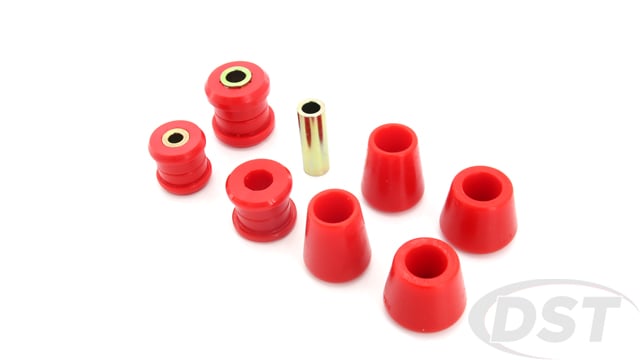

BumpStop-ShockBushing

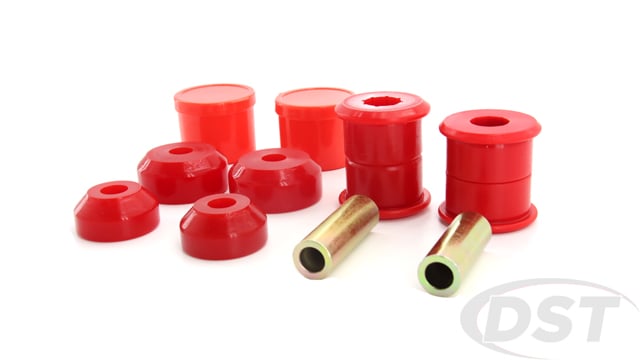

Front-RearControlArmBushing

Replace Rubber With Polyurethane

Hyper-Flex polyurethane bushings are engineered to enhance your vehicle's stability, control, and long-term durability. Compared to factory rubber bushings, polyurethane offers greater firmness, allowing the suspension to perform more precisely while resisting wear over time. Although it may introduce slightly more NVH (noise, vibration, and harshness), most drivers find the improved performance and longevity well worth it. Replacing all bushings ensures uniform performance, allowing the suspension to work as designed and preventing inconsistent handling caused by upgrading only a single component.

Restore Your Honda Prelude Like New!

Upgrade your Honda Prelude and restore that like-new driving feel. Energy Suspensions Hyper-Flex Kit (16.18106) replaces most of your factory rubber bushings with high-performance polyurethane components, giving your suspension the support it needs to perform at its best. Once installed, you'll experience improved rear traction during aggressive cornering, reduced body roll, and a more responsive, connected feel on the road.

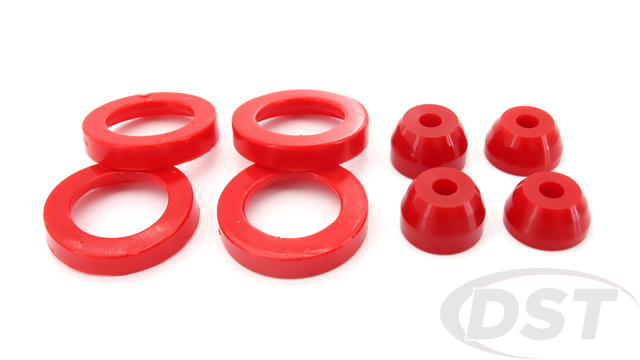

SpringIsolator-StrutRod

Energy Suspension 16.18106

Product Reviews for Complete Suspension Bushing Kit | Prelude 1992-2001

5 Star (7)
100%
4 Star (0)
0%
3 Star (0)
0%
2 Star (0)
0%
1 Star (0)
0%
starstarstarstarstar

Energy Suspension 16.18106

5 out of 5 based on 7 user reviews. Write a Review

A
verified_user

starstarstarstarstar" Review 1 Year Later "

This kit really did make a massive difference in suspension for me it was a pain to pop out all the old bushing some I had to burn with a torch others knock it out with a socket and hammer and then use a sawzall to cut it out but it is worth the struggle no more knocking sounds anymore and I can take corners a lot better now and Is better than anything.

verified_user Verified Buyer - Anthony Ramos - . Energy Suspension 16.18106 - 5 out of 5
B
verified_user

starstarstarstarstar" Worth the money and THE TIME to install!! "

I bought this kit for my 1997 Honda Prelude BB8 5-th Generation (i live in Austria). Yes, this kit for the 92-96 Prelude fits the 5th generation BASE Prelude. Just the front upper control arm bushings does not fit from the kit, the rest fits perfect for my Lude. If you want to COMPLETE your bushing kit for the 5 gen. BASE Prelude you have to buy the Rear Trailing Arm Bushing Kit (16.7105), front sway bar bushing kit (16.5123) and rear sway bar bushing kit (16.5122) and of course the bushings for the front upper control arm (I did not find any from ES, just search in the aftermarket) or you buy the whole control arm with the bushings and the ball joint already in place. After the install (it takes a while to change them), and of course after a new track, steering alignment, my car feels like new. 100 % recommend. And, it is cheaper then buying original Honda bushings (and you did not find all of them at Honda, you have to buy for example the whole front under control arm because you CAN`T buy just the bushing from Honda). Editors Note: We can not confirm parts will fit when the manufacturer does not recommend fitment. I submitted this only for information. DST or Energy does not insure fitment.

verified_user Verified Buyer - Bogdan George - . Energy Suspension 16.18106 - 5 out of 5
J
verified_user

starstarstarstarstar" Review 2 Years Later "

Working great, Thank you.

verified_user Verified Buyer - Joseph Reuven - . Energy Suspension 16.18106 - 5 out of 5
J
verified_user

starstarstarstarstar" Great product "

Re-bushing the whole suspension on my 96 prelude (ukspec) and can not say anything else but what a difference it made. Even doing all the work on my driveway and garden shed they were so easy to install. Still running on factory/standard dampers springs and wheels the handling is so mush better and fears of a bumpy and noisy ride never appeared so can not praise this product enough so next step fingers crossed is anti-roll bars and engine mounts. Top class product and well happy thanks all.

verified_user Verified Buyer - jonathan bradburn - . Energy Suspension 16.18106 - 5 out of 5

MaterialPolyurethane
ColorRed
Black
Hardware IncludedYes

compare_arrows Compare with Similar Parts


This Part
16.18106 compare
$287.44
Prothane
Prothane compare
$214.87
($72.57) cheaper
  • star_borderstar_borderstar_borderstar_borderstar_border
  • Bushing Material: Polyurethane

question_answer Customer Questions and Answers


Question:
Do you have instructions for the rest of the kit 16.18106, not for the control arms bushings?
Answer:
https://www.energysuspensionparts.com/installation_instructions/energy_suspension/17162.pdf https://www.energysuspensionparts.com/installation_instructions/energy_suspension/17265.pdf https://www.energysuspensionparts.com/installation_instructi ions/energy_suspension/17266.pdf ...see more
